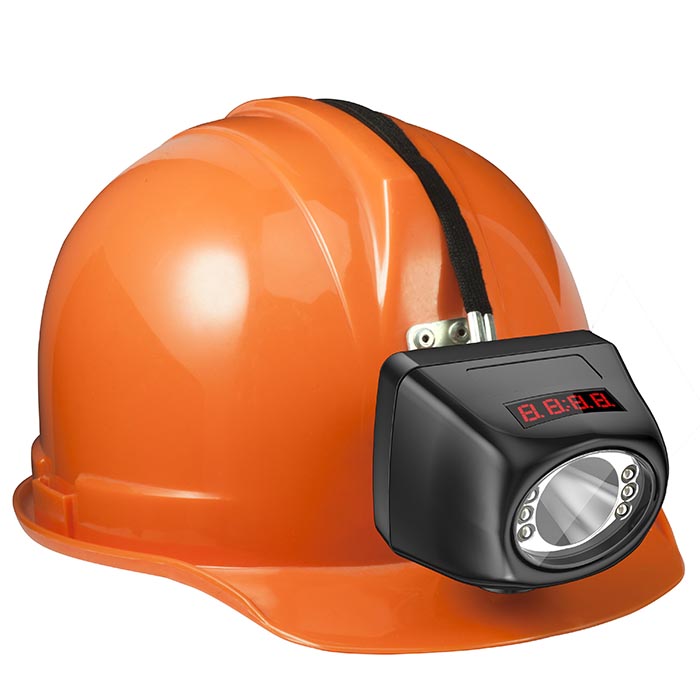

KL4.5LM underground safety cordless portable led mining light/cap lamp
KL4.5LM underground safety cordless portable led mining light/cap lamp
KL4.5LM underground safety cordless portable led mining light/cap lamp
KL4.5LM underground safety cordless portable led mining light/cap lamp
KL4.5LM underground safety cordless portable led mining light/cap lamp
KL4.5LM underground safety cordless portable led mining light/cap lamp

KL4.5LM underground safety cordless portable led mining light/cap lamp

1. Digital and cordless portable led mining light /cap lamp
2. 5200mAh lithium battery, more than 15 hours lighting time
3. The KL4.5LM led cordless mining lihgt has digital service, which will show product number, time, and battery balance and it will remind the user to recharge it when not enough power.

Model Number : KL4.5LM

LED light source : CREE

Power Source : Rechargeable Battery

Battery Type : li-ion battery

IP Rating : IP68

Certification : ATEX,MSHA,SABS, IECE

Lamp Body Material : PC

Warranty(Year) : 1

Lamp Power(W) : 1

battery capacity : 5.2Ah

battery type : li-ion battery

Charging time :

Whatapp:+8615816897019

Email: [email protected] / [email protected]

Produt Details Download

KL4.5LM underground safety cordless portable led mining light/cap lamp

Product details:

1. Digital and cordless portable led mining light /cap lamp

2. 5200mAh lithium battery, more than 15 hours lighting time

3. The KL4.5LM led cordless mining lihgt has digital service, which will show product number, time, and battery balance and it will remind the user to recharge it when not enough power.

4. All in one case with PC plastic material, make very good feature of explosion-proof, protection in electrical short-circuit.

5. The cap lamp mainly used in coal mine lighting, mining, oil extraction and tunnel.

6. MSHA & TUV Approved IP68 Cordless safety helmet lamps



Specification of cordless portable led mining light/cap lamp:

Features

Value

Unit

Light source

LED Power

1

W

Luminous flux

>120

Lm

Life time

>50.000

hour





Li-ion battery





Rated capability

5.2

Ah

Rated voltage

3.7

V

Continuous working time

>15

hour

Charging time

<6

hour

Life time

1000

circle

Charing voltage and current

4.9V@1A

lamp lighting degree (distance 1 meter)

>7000

Lux

Accessory light Usage life hour

100000h



Short circuit protect time

<15ms



Weight (with battery)

<215

g

Outline dimension

77*61*55

mm

IP Class

IP68

EX MARK :

I M1 Ex ia op is I Ma En 60079-35-1



Application:

1. camping, emergency, patrol, police, firefighting.

2. overhaul, repair, dockyards,search and rescue,oil plant.

3. oil platforms, miner cap lamp, railway, highway, electric power plant.

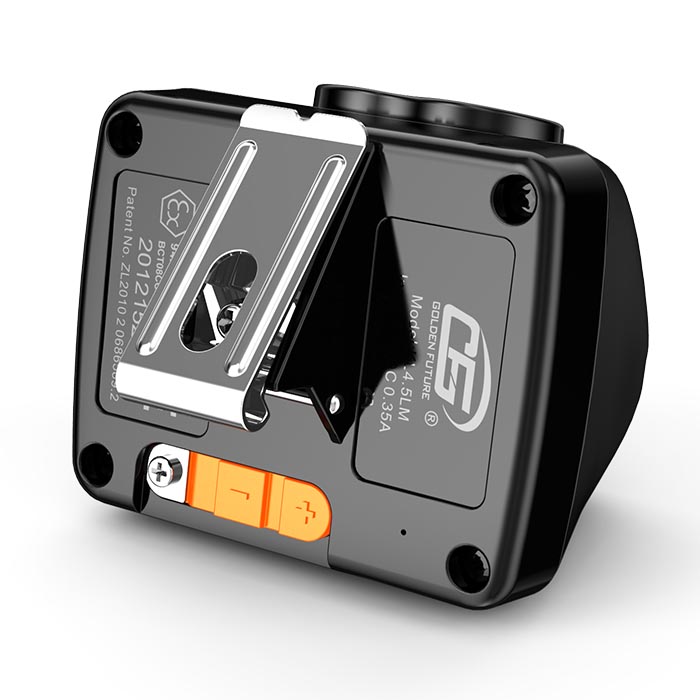

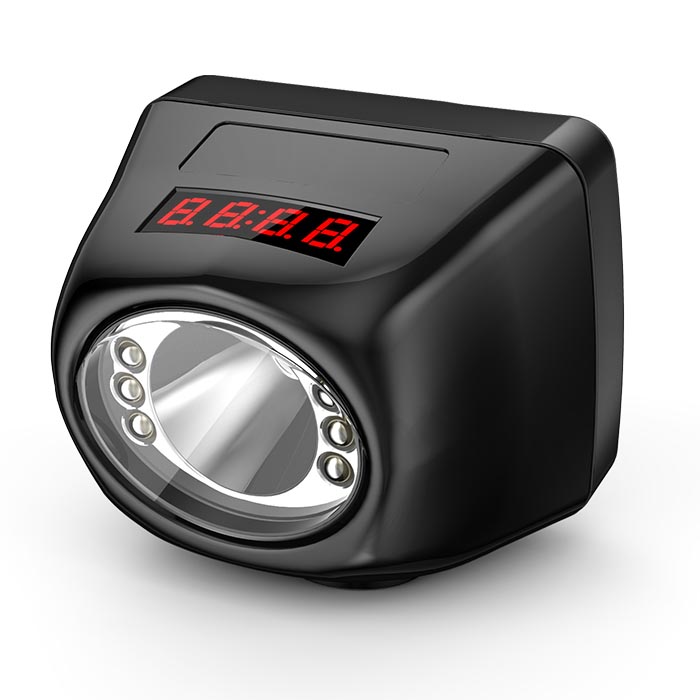

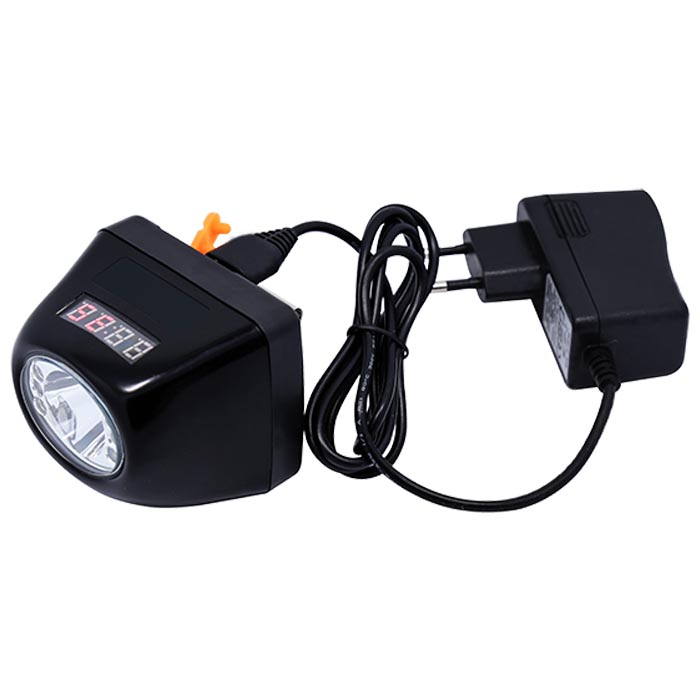

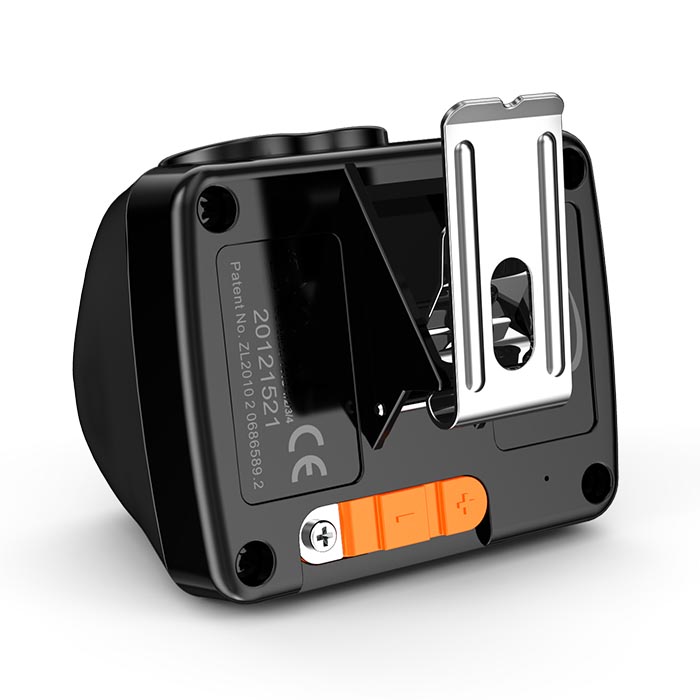

Product show:

KL4.5LM cordless mining light/cap lamp/safety mining lamp/mining cap lampKL4.5LM cordless mining light/cap lamp/safety mining lamp/mining cap lampKL4.5LM cordless mining light/cap lamp/safety mining lamp/mining cap lampKL4.5LM cordless mining light/cap lamp/safety mining lamp/mining cap lampKL4.5LM cordless mining light/cap lamp/safety mining lamp/mining cap lampKL4.5LM cordless mining light/cap lamp/safety mining lamp/mining cap lamp





Packaging & Shipping

Each miner lamp is presented in one inner box, 20 pieces are packed in one carton with the size of

43x34x24 with charger. gross weight: 9.5 kg



Our factory

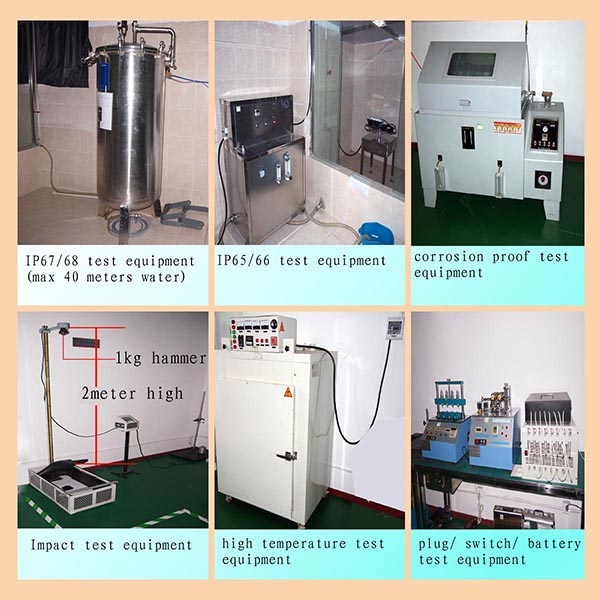

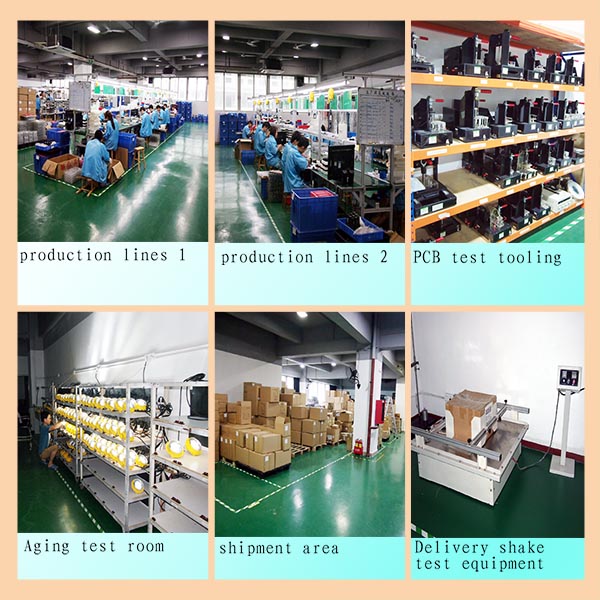

golden future production lines/test equipmentgolden future test equipmentgolden future factory/china suppliers

Our Services

Being focused on LED products, provide good quality, quick delivery, AQ discount for all customers.

1. For all your inquires, we will reply you in detail within 24 hours.

2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.

3. We have sales who have engage in LED many years to provide custom-made the sales solution.

4. We have engineers who has the experience of projects to solve the problems of technical.

5. We have very experienced R&D engineers and we have strong ability to do ODM projects.



Looking forward to cooperating with you.



FAQ



Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.

Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)

Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.

Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.

Q: 6. How to make this payment?
A: TT, Paypal, Western Union.

Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.


Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.
