DDC01 Newest led rechargeable camera headlamp/cap lamp

Model : DDC01
Power Source : Rechargeable Battery
Lighting Period (h) : >12
Certification : CE, EMC, RoHS
IP Rating : IP65
LED Light Source : Cree
Camera pixel : 5M
battery capacity : 6.6Ah
Color : black
IP rated : IP65
Charging Time :

Product Details

Newest led rechargeable camera headlamp/cap lamp

Product Description

This headlamp is suitable for video evidence in the process of the maintenance of high-safe products. Such as routine maintenance for high-speed train and aircraft, security check of pressure vessel and elevator device. It can not only supervise maintenance personnel’s job, but also protect their rights in case of accident. This headlamp are also very popular for some outdoor sports enthusiasts for fishing, riding, hiking etc. They can easily take video for some wonderful instant meanwhile they are moving.

Using environment:

Environment temperature: -20 ℃ ~ +45 ℃.

Relative humidity: 15 ~ 85%RH.

Performance Features

Security: DDC01 camera headlamp has the protection of over-charge, over-discharge and short circuit; With intelligent charger to extend the battery life. The battery pack is protected by plastic housing for dropping resistance.

Environmental Friendly: DDC01 camera headlamp adopts the latest CREE LED and excellent optical design, which makes the light strong and soft. It has long illumination distance at night, long life span and free maintenance. High energy rechargeable battery, with low self-discharge rate and without memory, can be recharged many times.

Product Features: DDC01 camera headlamp can be adjusted from various angles. People can wear this headlamp on the head directly with head strap, also can fix head strap on the helmet as cap lamp.

Lighting performance: Strong light and soft light can be changed freely. It can be made long distance lighting and broad lighting in order to meet the requirements of maintenance at night and making videos.

Photographed Function: In the lamp, image sensor is equipped to video. laser positioning is equipped to locate for taking video. It can meet the video demand in specific environment.

Practical function: DDC01 has light weight and little size, easy to operate. It can meet various working requirement.

Main technical parameters

Items		Unit	Value
Rated Voltage		V	3.7
Rated Capacity		Ah	6.6 Ah 18650 lithium battery (with protective PCB and protective shell)
LED Source	Rated power	W	1
	lifespan	h	100,000
	CCT	K	5500
Continuous Working Hours (spot light)		h	≥18
Charging Time ( specified charger)			≤6
Video Hours	Light on		≥ 6（Sustainable time of electricity consumption）
	Light off		≥ 8
visual Angle		degree	80
Camera pixel		M	5
Camera Resolution		19201080P / 1280720P / 848*480P for options
Memory card capacity		G	32 / 64G for options
Video file size		MB/minute	25～60
Video laser positioning		Laser light will be turned on automatically to locate video production while videoing
Video format		MP4
Battery life		cycle	About 500
Size		mm	Headlamp 75.5×70x36.5
			Battery pack: 98x60x42
Weight		g	300
IP rated		IP65

Operating Instructions

led rechargeable camera headlamp

(1) Button operations

Lamp button: press lamp button one time and strong light on, press this button again and auxiliary light on. Press this button for 2s and strong light blinks

Power button: Pressing power button for 2s to begin to video. green indicator light blinks, laser light turns on automatically, pressing this button again and laser light off, Press 2s again, video stop and indicator off

(2) Indicator lights status introduction

Green indicator light blinks: taking video

Green indicator light always on : standby mode

Red indicator light always on: No TF card or TF card fault

Red indicator light blinks slowly ( 2s for one time): TF card filled fully

Red indicator light blinks fast ( 1s for one time): low battery power

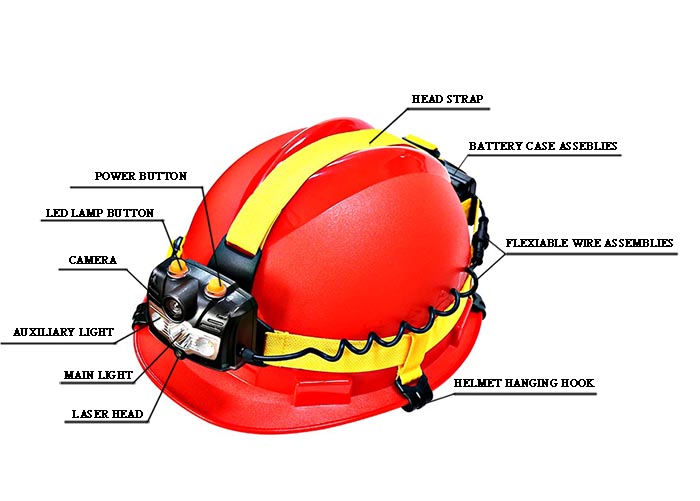

(3) Others parts function description

Camera: for video

Main light: for long distance illumination

Auxiliary light: short distance illumination in broad range, taking video at night

laser head: Positioning to take video, laser light will be turned on automatically while videoing, red laser point indicate the centre location of videoing.

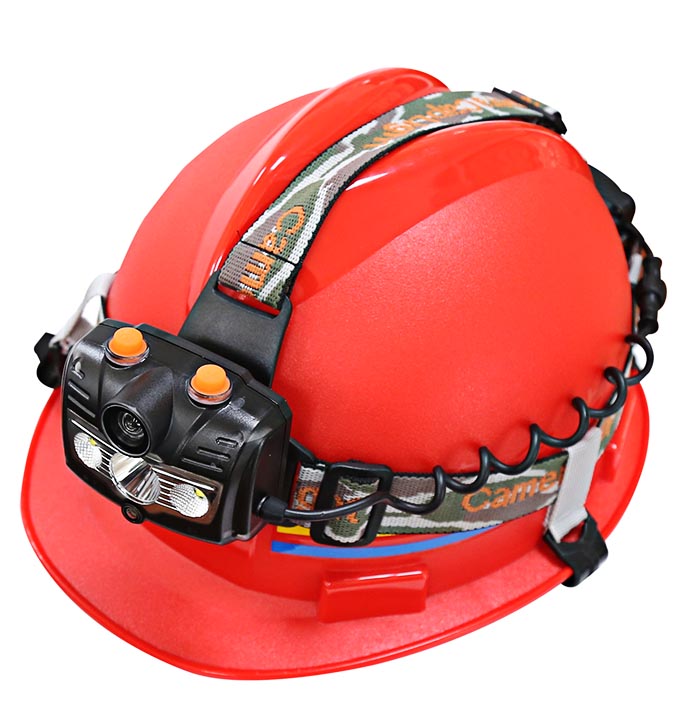

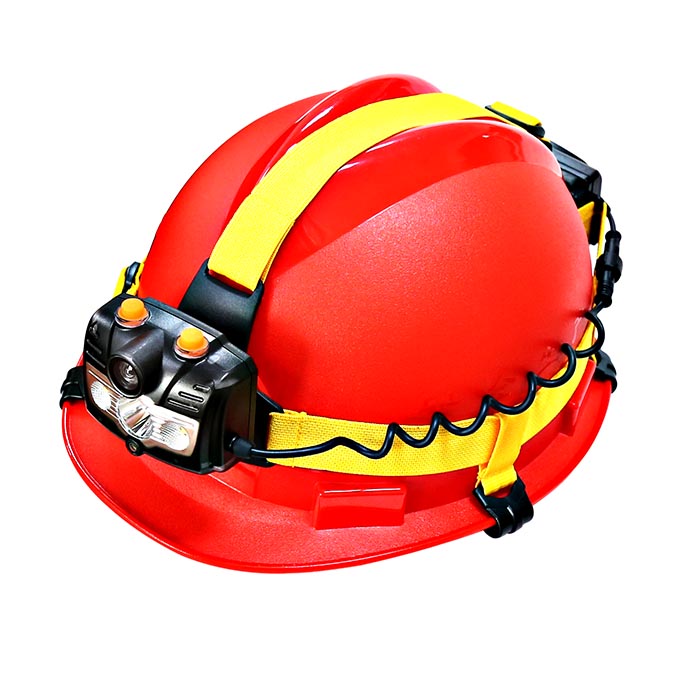

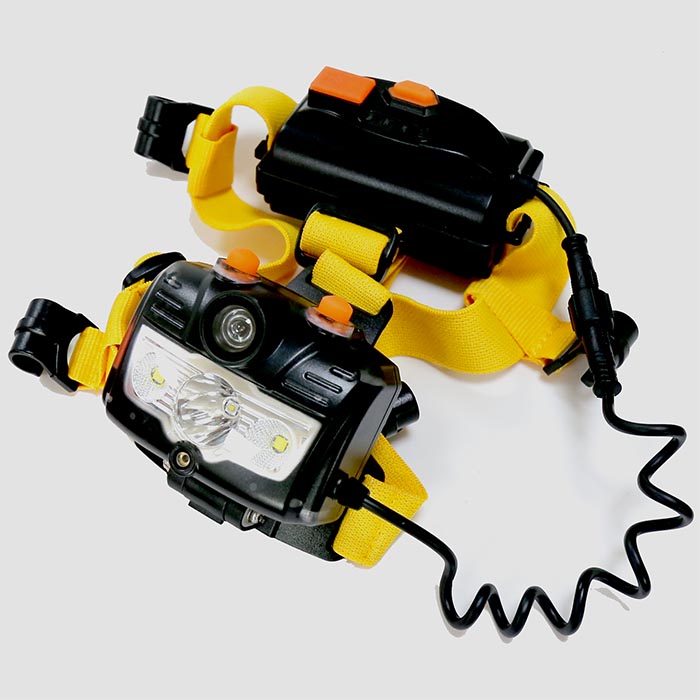

Product show:
