KL5LM 15000LUX LED underground mining light/miners lamp with low power indication

  • Model Number : KL5LM(C)
  • LED light source : CREE
  • Power Source : Rechargeable Battery
  • Battery Type : li-ion battery
  • IP Rating : IP68
  • Certification : ATEX
  • Lamp Body Material : PC
  • Warranty(Year) : 1
  • Lamp Power(W) : 1
  • battery capacity : 7.8Ah
  • battery type : li-ion battery
  • Charging time : 6H
  • lighting degree : 15000 lux
  • :

KL5LM 15000LUX LED underground mining light/miners lamp with low power indication

American CREE 1 watt LED as main light, and 6pcs auxiliary light.

Lighting degree for main light is more than 15000 lux, and continuous lighting time is more than 15 hours.
the main light will flash one time per 6 seconds to remind the user to recharge it when power is not enough
7.8Ah li-ion rechargeable battery.

Aluminum charger with MCU controlled charging system to charge the battery more quickly and stable.
CE/ATEX approved.

Electronic Datas of KL5LM 15000LUX miners lamp





Light source

LED Power



lighting degree



Life time




Rated capability




Rated voltage



Li-ion battery

Continuous working time




Charging time




Life time



Charing voltage and current


Accessory light Usage life hour



Short circuit protect time



Weight (with battery)



IP Class



I M1 Ex ia op is I Ma En 60079-35-1

Advantages of the KL5LM 15000LUX miners lamp :

Safety: All the housing materials are bulletproof PC, which is very strong to afford heavy impact or high dropping.

MCU controlled protection in electrical short-circuit, automatic power-off on the socket ,

it is explosion proof, waterproof and dustproof, and ATEX Certified for use in explosive atmospheres such as coal mines.

Reliability: Tough housing, optimized design, a solid LED light that uses high efficient IC drivers guarantee the product is durable and strong.

The durable Li-ion battery has an over-charge and over-discharge protection system to protect the battery from over charge or over discharge.

Efficiency: more than 15 hours at full brightness for main light, and more than 60 hours continuous lighting for auxiliary light.

Battery usage lifetime about 1000 cycles

Environmental: The cap lamp is made from environmentally friendly Li-ion battery and other non hazardous materials as per RoHS Directive.

Economy: no requirement to replace bulbs, lifetime of li-ion battery is three times longer than lead-acid cap lamp and saving in maintenance makes the product more compatible in price

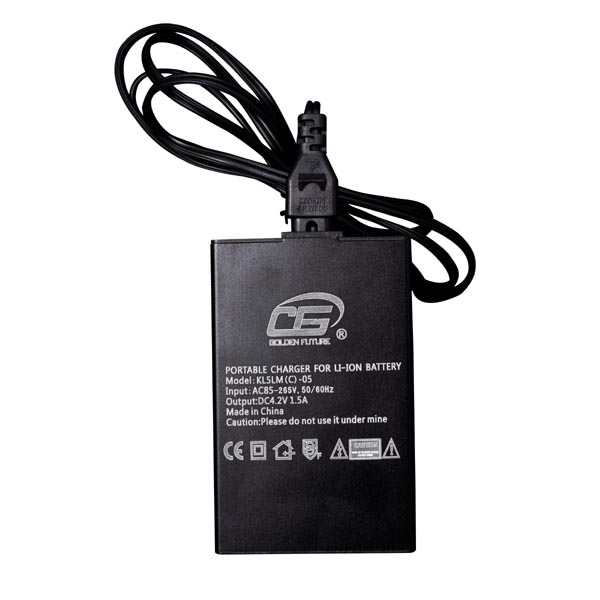

Charger input power: AC100-240V / 50-60Hz. Charging time: within 5 hours,

Type of protection: EI M1 Ex ia op is I Ma En 60079-35-1

Type of Certificate: CE/ATEX, SABS (KL4.5LM), MSHA(pending)

Protection category: IP68

Packaging & Shipping

KL5LM(C):20pcs/ctn ,gross weight:20kg/ctn,carton size:46x36x36CM

Product show:

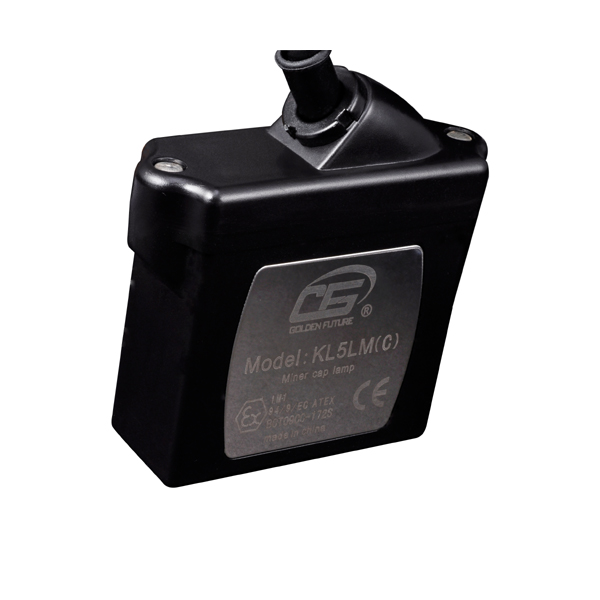

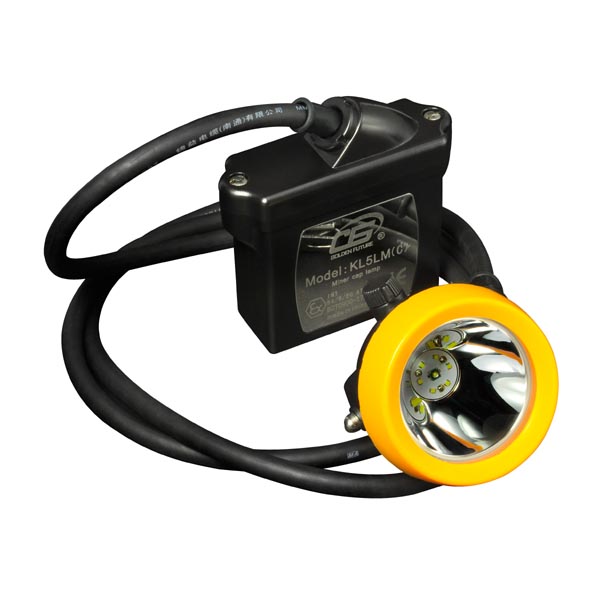

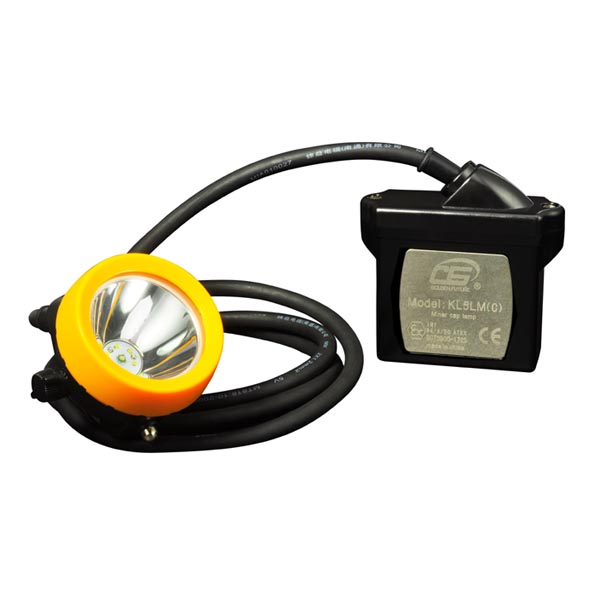

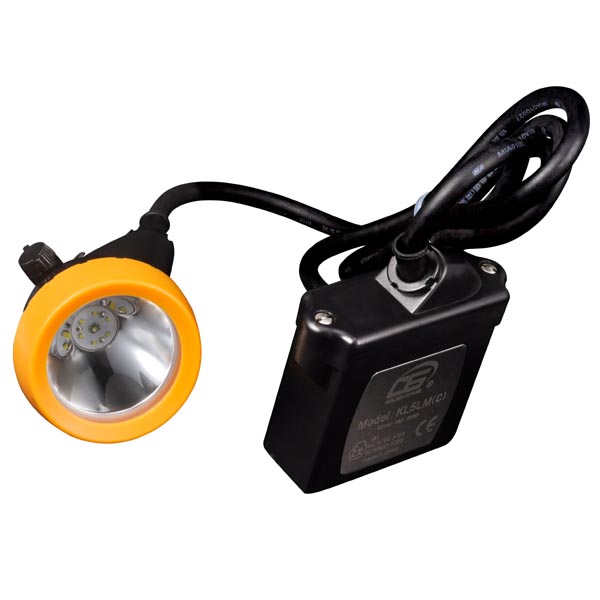

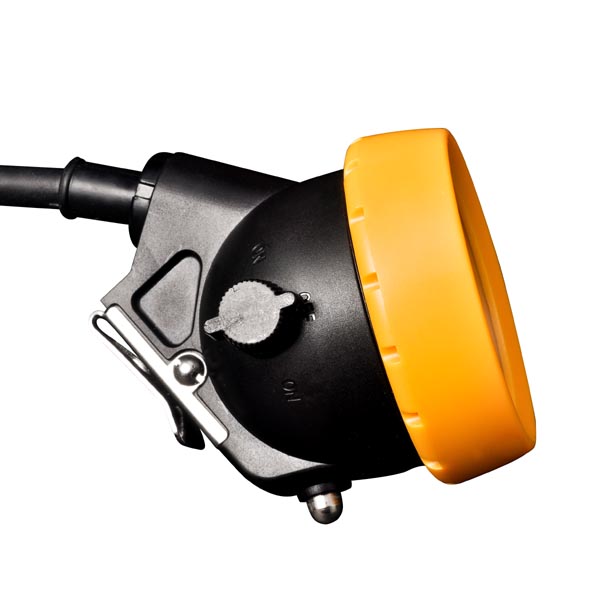

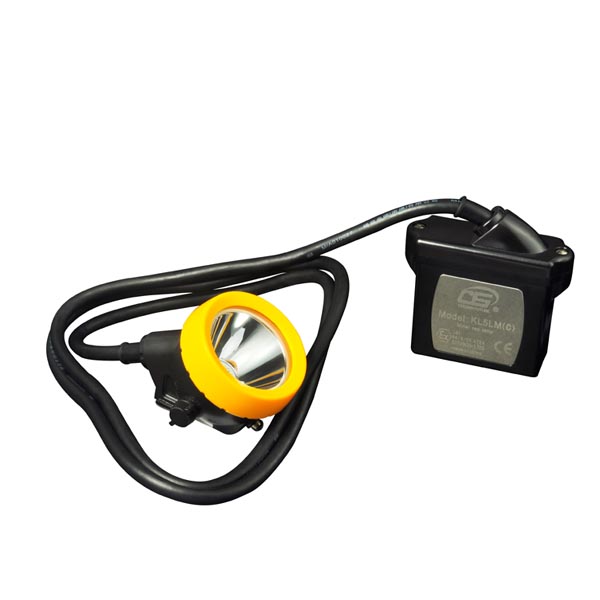

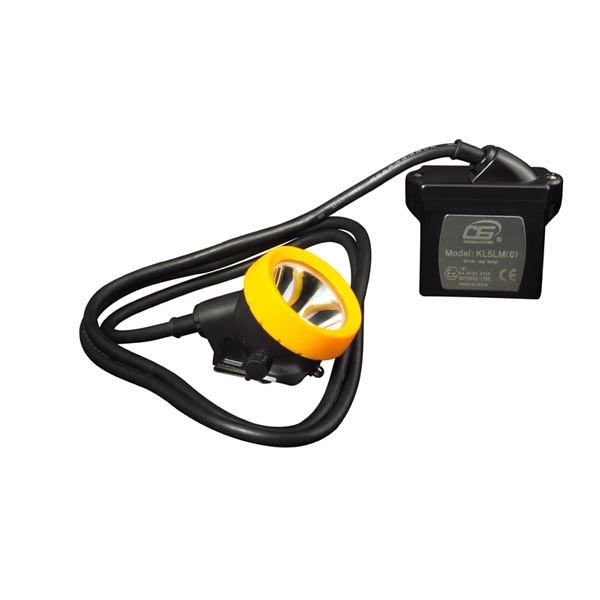

KL5LM led mining cap lamp/underground mining light/helmet lightKL5LM led mining cap lamp/underground mining light/helmet lightKL5LMC10 拷贝KL5LM led mining cap lamp/underground mining light/helmet lightKL5LM led mining cap lamp/underground mining light/helmet lightKL5LMC14拷贝
