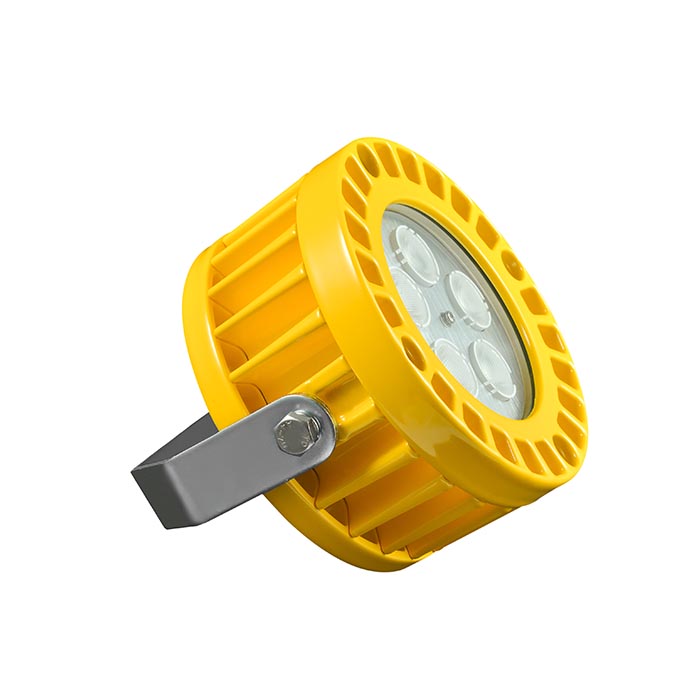

DL619 led warehouse loading dock light with flexible arm
DL619 led warehouse loading dock light with flexible arm
DL619 led warehouse loading dock light with flexible arm
DL619 led warehouse loading dock light with flexible arm
DL619 led warehouse loading dock light with flexible arm
DL619 led warehouse loading dock light with flexible arm

DL619 led warehouse loading dock light with flexible arm

Model Number : DL619

LED Light Source : CREE

Input Voltage(V) : AC85-265V

Lamp Power(W) : 30

Lamp Luminous Flux(lm) : 3800

Working Lifetime(Hour) : 50000

IP Rating : IP66

Housing : aluminium alloy

Certificatiion : UL,CE,ROHS

Corrosion proof : WF2

Whatapp:+8615816897019

Email: [email protected] / [email protected]

Produt Details Download

DL619 led warehouse loading dock light with flexible arm

Light Source:

5pcs Cree LED

50,000 hours average rated life

beam angle:25°standard (15°,45°,60° for option)

Lens:

Toughened glass(standard)

Impact-resistant clear polycarbonate,Impact-resistant diffuse polycarbonate for option



Specification:

No. Parameters Unit value
1 Power supply Rated voltage V AC 85-265V
Rated power W 30
LED Luminous flux Lm 3800
Avg.lifespan h ≥50000
2 Service cable Lead-in cable mm φ6—φ8
3 Dimension Light head mm Φ142*167*71
4 Weight Light head g 1750
5 Corrosion proof WF2
6 Insulation grade
7 IP grade IP66



Features:
a) Reliability: high impact resistant with appropriate structure design; with polyester powder coated surface;long time use in high temperature and corrosive environment;

b) Safety: dust proof and water proof with tightening structure

c) Energy-saving: high efficient semiconductor light-emitting technology, saving energy by 70% compared with the traditional light source;

d) Economy: long lifespan light-emitting diodes; maintenance-free

e) Convenience: U-tape bracket Mounting

f) Uniqueness: providing excellent optical performance by adopting high reflecting, high transmittance focus len

Application :


DL619 is aplicated in area illumination for plant, port, warehouse, goods shelf, container etc.

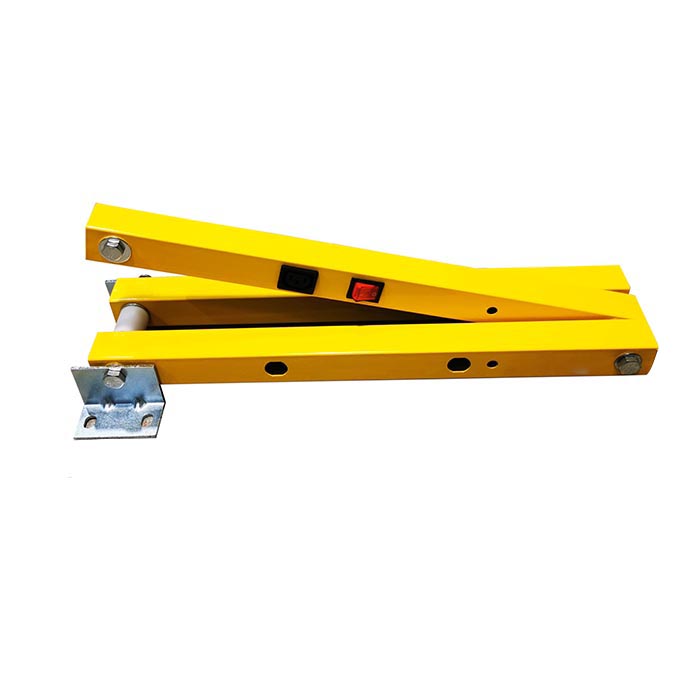

Flexible arm specificatons



Flexible arm length: 1m/ 1.8m optional

Tube section size:4*4cm

Tube wall thickeness: 2mm

with switch and plug socket on it. (cable go through the flexible arm)

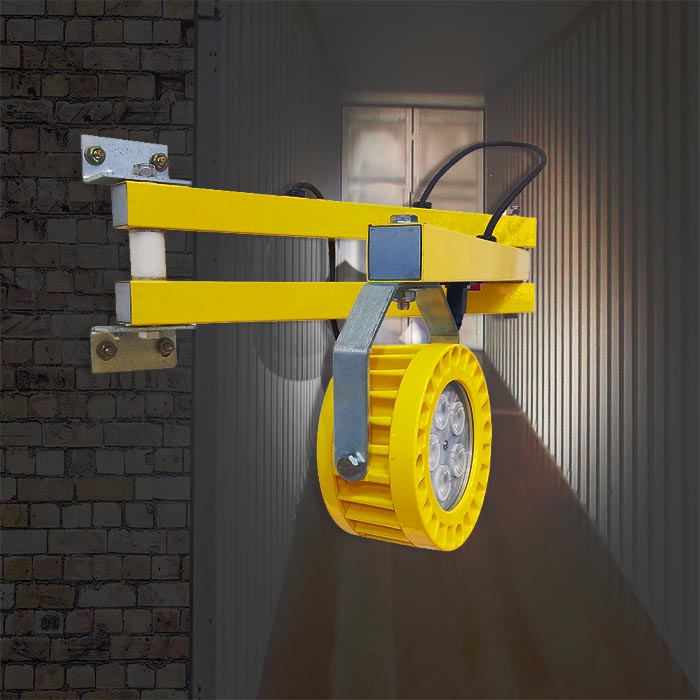

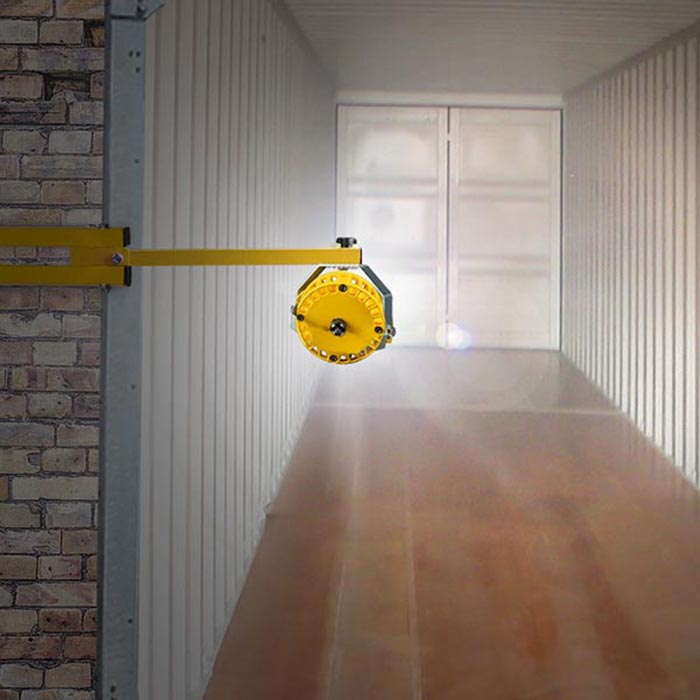

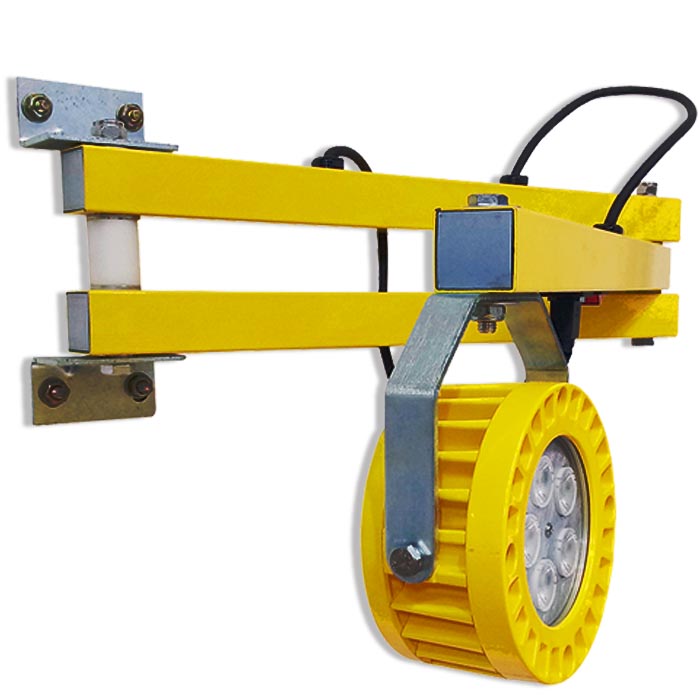

Product show:

loading dock light/warehouse loading dock lightloading dock light/warehouse loading dock light

loading dock light/warehouse loading dock light

Packaging & Shipping



1) one pieces in one carton;
2) gross weight: 3 kg



Application:

loading dock light/warehouse loading dock lightloading dock light/warehouse loading dock lightloading dock light/warehouse loading dock light



Our Services

Replying your inquiry within 24 hours

Consultation from professional and experienced staff

Providing 1-3 years warranty

Solid pakage & fast delivery & newly tracking mews

OEM is welcome. Providing customized service.

Company Information

Golden Future Enterprise HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years,especially for miner lamp, explosion proof lighting fixture, led street light and other led commercial lightings,and etc.

Besides the led application products, our factory also can do some OEM products, such as making moylds, plastic injections, CNC aluminum parts or copper parts.

Please do not hesitaye to contact us if you need led application products or need to develop new products.

You are warmly welcome all the time.

FAQ

Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.

Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)

Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.

Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.

Q: 6. How to make this payment?
A: TT, Paypal, Western Union.

Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.

Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.
