Led explosion proof light

Home > Products> Miner lamp

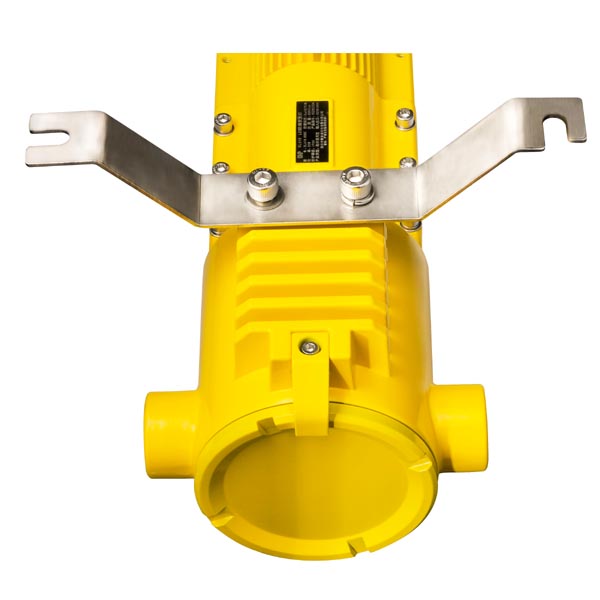

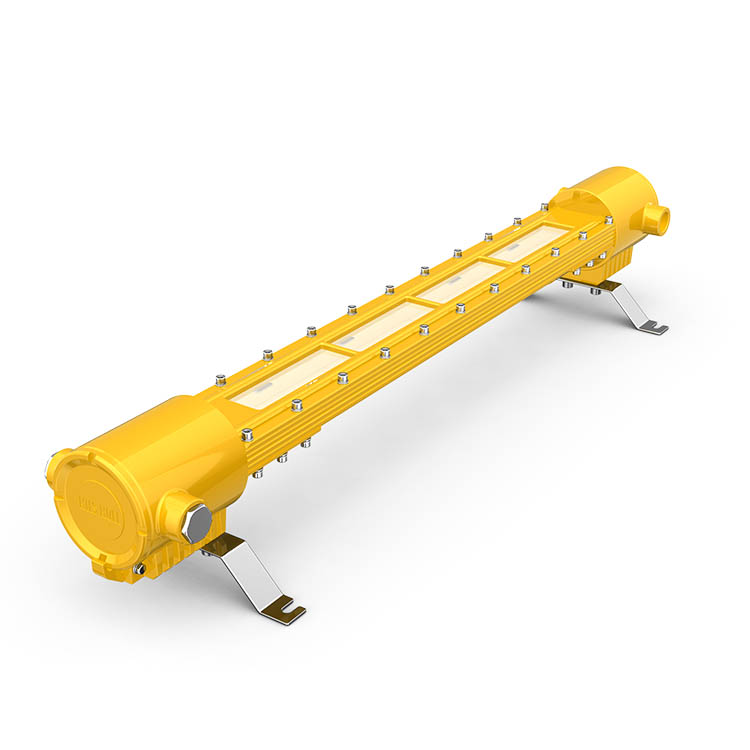

DL618A ATEX approve 40w cree led explosion proof light

  • Model Number : DL618A
  • LED Light Source : CREE
  • Input Voltage(V) : AC85-265V
  • Lamp Power(W) : 40
  • Lamp Luminous Flux(lm) : 5400
  • CRI (Ra>) : 70
  • Working Temperature(℃) : -30 - 50
  • Working Lifetime(Hour) : 50000
  • IP Rating : IP66
  • Ex mark : Exd IIB+H2 T5 Gb
  • light source : Cree xm-L led
  • beam angle : 160
  • Housing : aluminium alloy
  • Certificatiion : ATEX,CE,ROHS

DL618A ATEX approve 40w cree led explosion proof light

DL618 LED Explosion Proof light is applicable for zone I and zone II , or gas area, restricted area or heavy industrial processing equipment area, drilling platform and other coastal or offshore dangerous areas, Such as port, ship, oil, petrochemical, oil depot, and it’s designed and manufactured according to requirements of EN60079-0: 2009, EN60079-1: 2007, EN60079-31: 2009, IEC60079-0: 2007, IEC60079-1: 2007, IEC60079 31: 2008. The Ex marking is Ex d B+H2 T5 Gb / Ex tD 21 T95

This explosion proof light is special designed to replace traditional fluorescent tube.It has longer lifetime,don\'t need to replace tube. It can not only save energy,but also save a lot of maintenance costs.More economic and environmental .



Models available:

DL618A: 40 watt

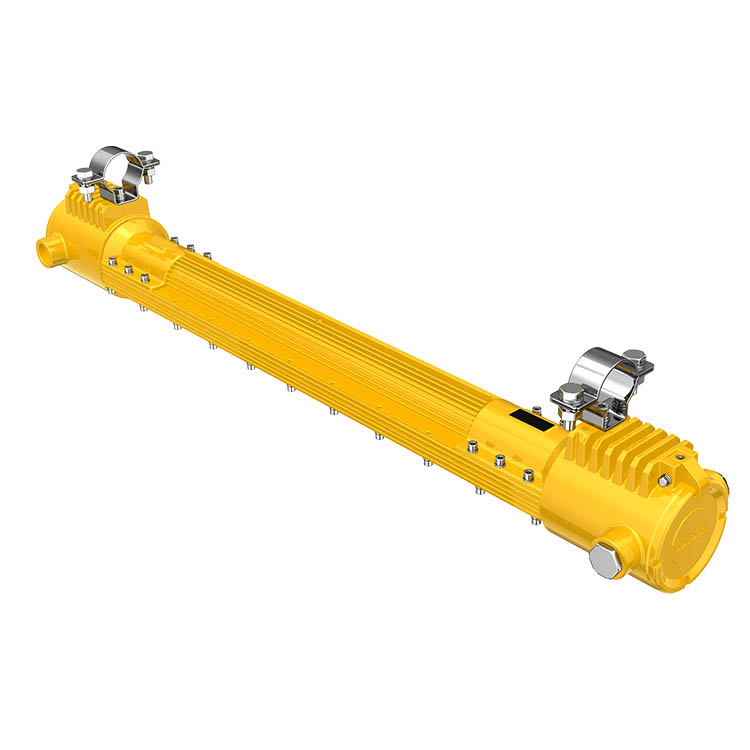

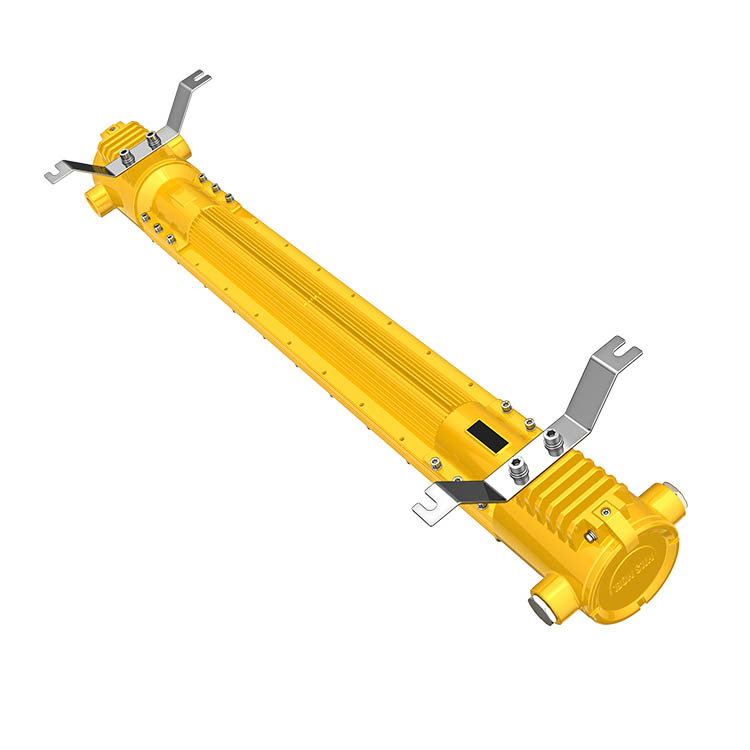

DL618B: 80 watt

DL618E: 40 watt with emergency function

Brief information:

1.product model:DL618A

2.power:40w

3.Initial Luminous Flux :5400lumens

4.housing material:die-cast alluminium alloy with toughened glass

5.lifetime:>50000h

6.Ex mark: Ex d II B + H2 T5 Gb

7.light source:cree LED

8. warranty:1year



Technical parameter

Items

Unit Value

Light

Source

LED

CREE XT-E/ CREE XM-L

Luminous Flux

5400lumens

Color Temperature

5700-6000K

Color Rendering Index

Ra>70

power

40 watt

Input Voltage

AC 110-277V

Housing Material

Die cast aluminum housing with tempered glass

Dimension

ø90X800 mm

Weight

8 kg

Working Temperature

-30°C - 50°C

Beam angle

160°

Corrosion protection Classification

WF2

IP Classification

IP66

EX Mark

Ex d B+H2 T5 Gb / Ex tD 21 T95

Total harmonic current

<15%

Factor

>0.90

Mounting Angle

360°



Application

1. offshore platform, chemical plant,oil store,gas station,drilling rig area.

2. restricted district,heavy industry machining equipment area,offing area.

3. refinery,dangerous seacoast,fammable and explosion zone II.





Photometrics:

1) Lighting Distribution Curve: (Unit cd)

lighting distribution cureve of led explosion proof light

DL618A led explosion proof light

2) Lux Distance Curve

DL618A曲线3

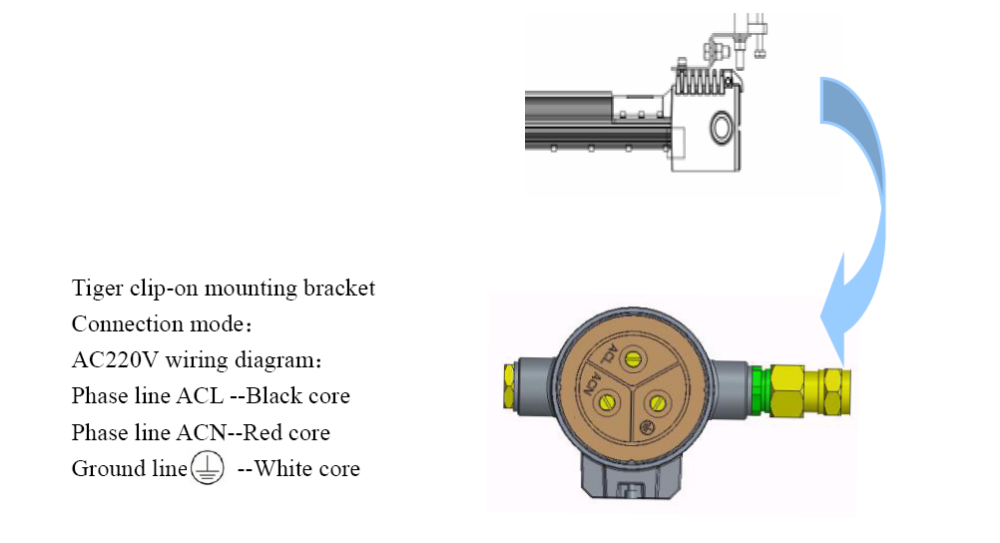

Installation Instruction:

DL618A安装1DL618A安装2DL618A安装3DL618A安装4





Please access the cable with power, pay attention to lamps to safety ground , and operate the light in right way.

Dimension and Package (unit: mm):

1) DL618 dimension: 910*151*117(figure 1)

2) Package size: 960*225*210 (figure 2)
