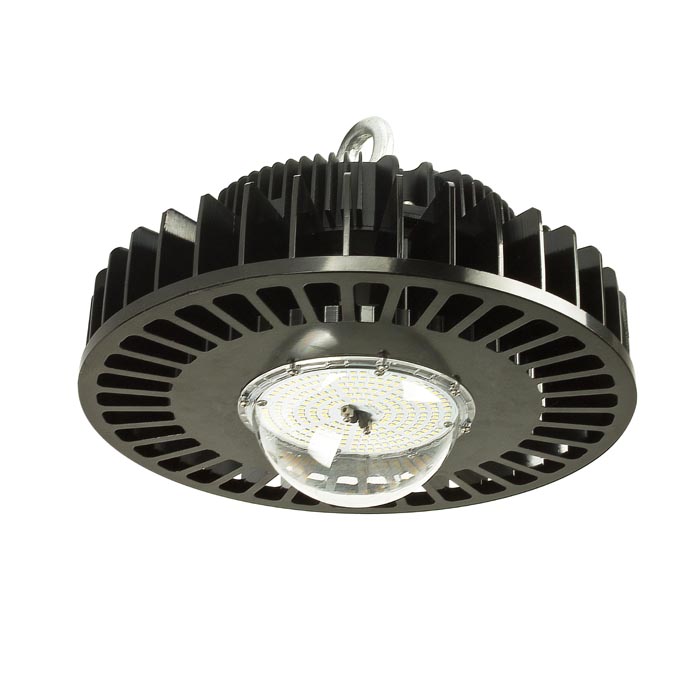

HL10B-200w long lifetime water proof led high bay light

  • Model Number : HL10B-200W
  • Light Source : LED
  • Item Type : High Bay Lights
  • LED Light Source : Philips
  • Warranty(Years) : 2
  • Input Voltage(V) : AC90-305V
  • Lamp Power(W) : 100
  • Lamp Luminous Efficiency(lm/w) : 110
  • Lamp Body Material : Aluminum
  • IP Rating : IP65
  • Certification : CE, EMC, LVD
  • best working temperature : 0-30
  • Beam angle : 60/90/120
  • Application : For workshop, factory, storage warehouse
  • longlife span : 50000hrs

200w long lifetime waterproof led high bay light

Product Description

1. High light efficiency >110lm/W
2. High Quality Philips LEDs with low lumen decay
3. Tj<80, PF ≥ 0.90
4. Mercury- and lead free, environment friendly,
5. Easy installation and low maintenance,
6. Surface of fixture especially treated with anti-
static, thermostable, anti-corrosive paint,
7. Integrated Meanwell driver, excellent heat dissipation ability and stable quality.
8.Housing material: Forging aluminum, the best material for heat dissipation.
9.Long lifespan up to 50000hrs



Technical specifications:

Model

LED Type

LED Q'ty
(pcs)

Color

Voltage

Beam Angle

Wattage

Lumen (lm)

CRI (Ra)

PF

HL10B-200

Philips3030

238

NW

AC90-305V

125°

200W

21800

70

≥0.9

Philips3030

238

NW

AC90-305V

60°

200W

19600

70

≥0.9

Philips3030

238

NW

AC90-305V

90°

200W

16200

70

≥0.9

Philips3030

238

NW

AC90-305V

120°

200W

21000

70

≥0.9

Philips3030

238

DW

AC90-305V

125°

200W

21200

70

≥0.9

Philips3030

238

DW

AC90-305V

60°

200W

19200

70

≥0.9

Philips3030

238

DW

AC90-305V

90°

200W

20500

70

≥0.9

Philips3030

238

DW

AC90-305V

120°

200W

20600

70

≥0.9


60°/90°/120° reflector for optional

waterproof led high bay light



Application of long lifetime waterproof led high bay light

1. Project lighting, IP65.

2. For workshop, factory, storage warehouse, exhibition center, gas station, toll station, and other places.

3. Replacement for sodium lamp

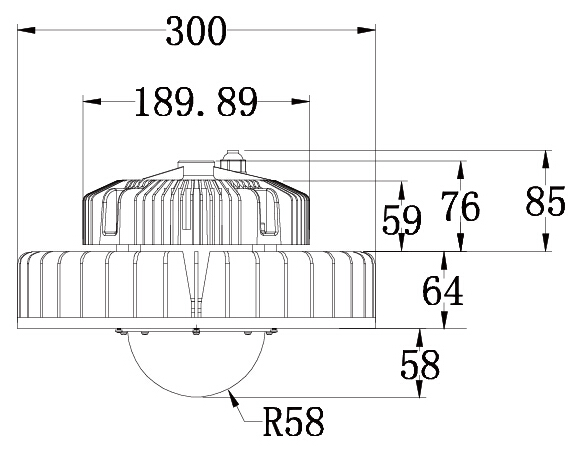

Installation specifications:

waterproof led high bay light



Application Notice:

1. Operating temperature:-20 to 45
2. Storage temperature:-25 to 55
3. Optimal environment temperature:0 to 30



Light distribution Curve:

waterproof led high bay light

Without reflector

waterproof led high bay light



60° reflector

waterproof led high bay light

90° reflector



waterproof led high bay light



120° reflector



Packaging & Shipping

package of long lifetime water proof led high bay light



Packing details

Fixture

60° AL Reflector

90° AL Reflector

120° AL Reflector

60° PC Reflector



Net weight

3.2kgs

0.38 kgs

0.55 kgs

0.68 kgs

0.55 kgs

Outer carton(mm)

560*285*280

415*415*340

570*570*235

590*590*210

420*420*600



Q'ty per ctn

2pcs

8pcs

8pcs

8pcs

10pcs

G.W per ctn

8.5kgs

4.1kg

5.8kg

6.3kg

7.5kg
