SPC200H2-200W high power led tunnel light

  • Model Number : SPC200H2-200W
  • Item Type : Tunnel Lights
  • Input Voltage(V) : AC85-265V
  • Lamp Power(W) : 200
  • Lamp Luminous Flux(lm) : 20000
  • Lamp Luminous Efficiency(lm/w) : 100
  • CRI (Ra>) : 80
  • Working Temperature(℃) : -20 - 45
  • Working Lifetime(Hour) : 50000
  • IP Rating : IP65
  • Certification : CE, ETL, RoHS, SAA, UL
  • Input Voltage : AC85-265V
  • light source : Bridgelux COB
  • beam angle : 50 and 120 degree
  • LED driver : Meanwell
  • CCT : CW,DW,NW,WW
  • warranty : 3 years

CE approval waterproof IP65 high power 200w led tunnel light

Brief information:

1.product model: SPC200H2-200W

2.power:200watt

3.output lumens:20000

4.inpurt voltage:AC85-AC265V

5.lifetime:>50000h

6.light source: Bridgelux COB LED

7.warranty:3year

8.Certification: CE/ RoHS/SAA/UL/ETL


Technical parameter of CE approval waterproof IP65 high power 200w led tunnel light



LED type

4pc COB 70W

lifetime

>50000h

waterproof

ip65

power

200w

lumens output

20000lm

beam angle

50,120degree

unit weight

18.49kg

CCT

CW, DW, NW, WW for option

Input voltage

AC85-265V

CRI

70-80

Certification

CE/ RoHS/SAA/UL/ETL



Application of CE approval waterproof IP65 high power 200w led tunnel light




1. Indoor project lighting.
2. Suitable for workshop, factory, storage warehouse,toll station, toll booth,gas station, supermarkets, stadium, exhibition center, and other places.

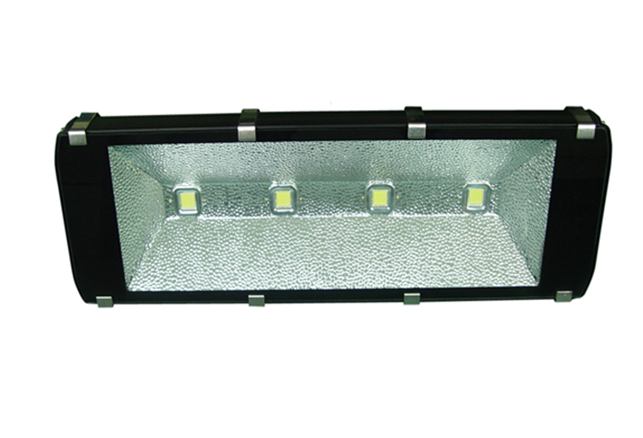

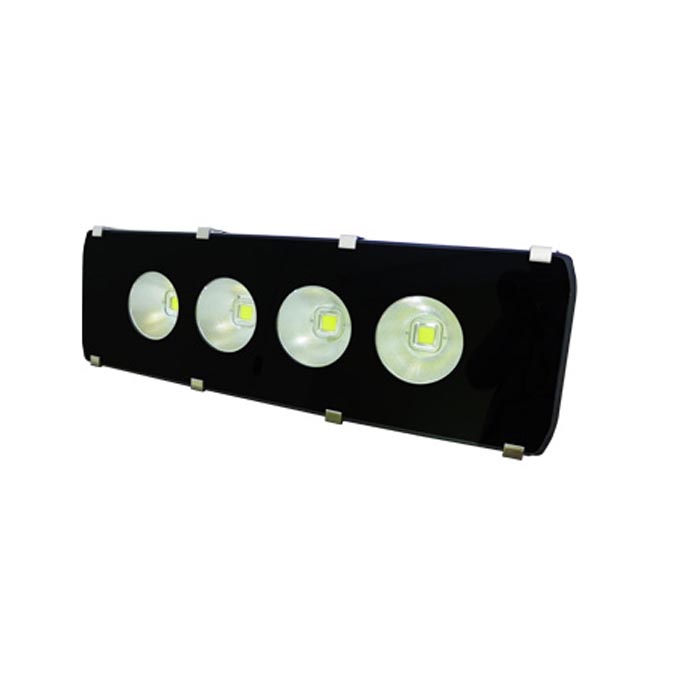

Product show :

200w led tunnel lightled tunnel light



Application notice:



1. Working temperature:-20 to 45

2. Storage temperature:-25 to 55
3. Optimal working temperature:0 to 30

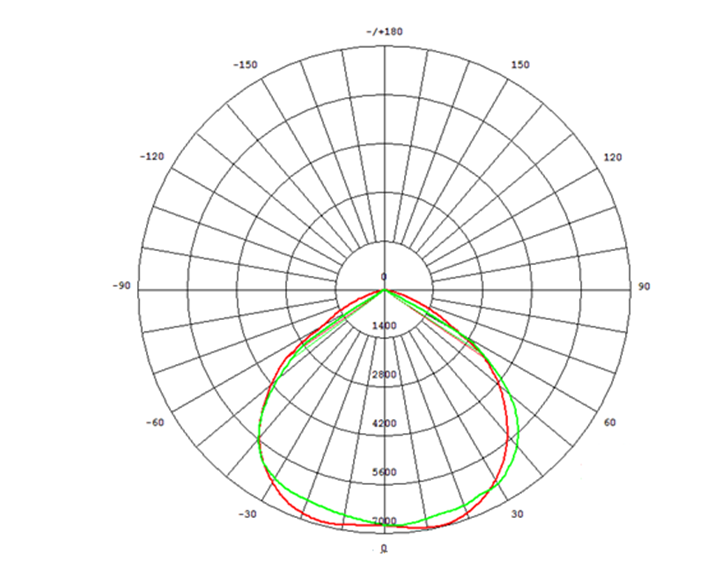

Lighting distribution Curve:







200W光谱图

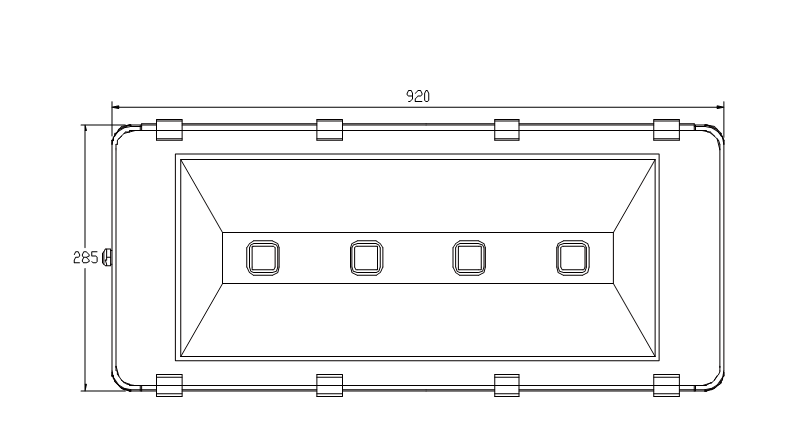

Dimension(MM):

200w Dimension



Packing details



1. Net weight:18.49 kgs
2. Outer carton size:990x380x280mm
3. Q'ty per ctn:1 pcs
4. G.W per ctn:20.11 kgs



Advantages:



1. Adopt high light efficiency light source, >100lm/W
2. Stable and low decay.
3. The Tj for LED is less than 85°C.
4. Lifespan up to 50000hrs.
5. Energy saving, excellent heat disspation.
6. ECO-friendly, mercury free, lead free.
7. Low maintenance and replacement costs.
8. Fixture surface with anti-static spray, improved resistance to acid, anticorrosive.
9. PF > 0.95.



Our Services

We can provide good quality, quick delivery, AQ discount for all customers.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems of technical.
5. We have very experienced R&D and we have strong ability to do ODM projects.
Looking forward to cooperating with you.

FAQ



Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.

Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)

Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.

Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.

Q: 6. How to make this payment?
A: TT, Paypal, Western Union.

Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.

Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.
