SPC120H2-120W waterproof led tunnel lights

SPC120H2-120W waterproof led tunnel lights

Model Number : SPC120H2-120W

Light Source : LED

Item Type : Tunnel Lights

LED Light Source : Bridgelux

Input Voltage(V) : AC85-265V

Lamp Power(W) : 120

Lamp Luminous Flux(lm) : 120000

Lamp Luminous Efficiency(lm/w) : 100

CRI (Ra>) : 80

Working Lifetime(Hour) : 50000

IP Rating : IP65

Certification : CE, ETL, RoHS, SAA, UL

Warranty(Year) : 3

LED driver : Meanwell

beam angle : 50 and 120 degree

CCT : CW,DW,NW,WW

Whatapp：+8615816897019

Email: [email protected] / [email protected]

high power energy-saving120w waterproof led tunnel lights

Product Description

Advantages of high power energy-saving120w waterproof led tunnel lights

1. Adopt high light efficiency light source, >100lm/W
2. Stable and low decay.
3. The Tj for LED is less than 85°C;
4. Lifespan up to 50000hrs.
5. Energy saving, excellent heat disspation.
6. ECO-friendly, mercury free, lead free.
7. Low maintenance and replacement costs;
8. Fixture surface with anti-static spray, improved
resistance to acid, anticorrosive.
9. PF > 0.95.

Specifications of high power energy-saving120w waterproof led tunnel lights

Model	LED Type	Color	Voltage	Beam Angle	Wattage	Lumen (lm)	CRI (Ra)	PF	IP factor
SPC120H2-120W	2 pcs COB	CW	AC85-265V	120°	120W±10%	11613±15%	70-80	≥0.95	IP65
		DW	AC85-265V	120°	120W±10%	11000±15%	70-80	≥0.95	IP65
		NW	AC85-265V	120°	120W±10%	10600±15%	70-80	≥0.95	IP65
		WW	AC85-265V	120°	120W±10%	10174±15%	70-80	≥0.95	IP65
Remarks:
1. Available color temperature CCT: CW:5500-6500K, DW:4700-5300K, NW:4000-4500K, WW:3000-3500K.
2. Lumen is based on the condition of Ta<25℃ with a tolerance of ±15 %.

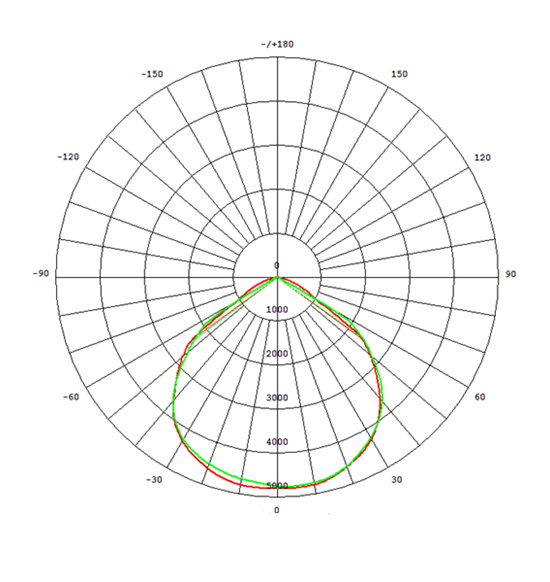

Lighting distribution Curve

120w led tunnel light

Application of high power energy-saving120w waterproof led tunnel lights

1. Indoor & outdoor project lighting;
2. Suitable for workshop, factory, warehouse, toll station, gas station, supermarkets, exhibition center, stadium and other places.

Packaging & Shipping

1. Net weight:11.95 kgs
2. Outer carton size:670x360x275mm
3. Q'ty per ctn:1 pcs
4. G.W per ctn:13.23 kgs

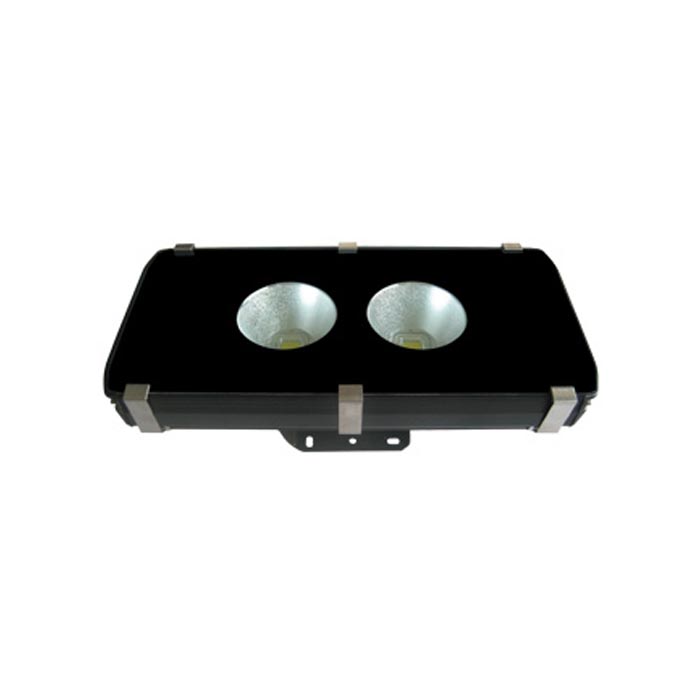

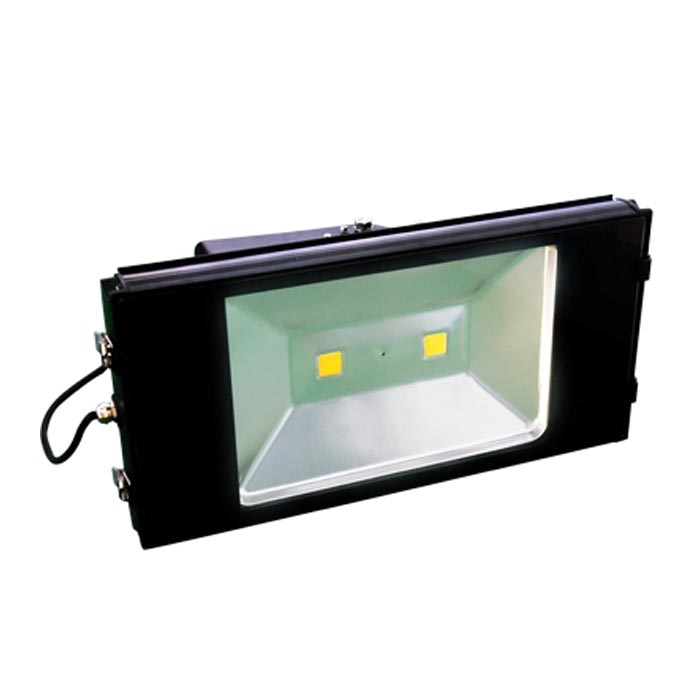

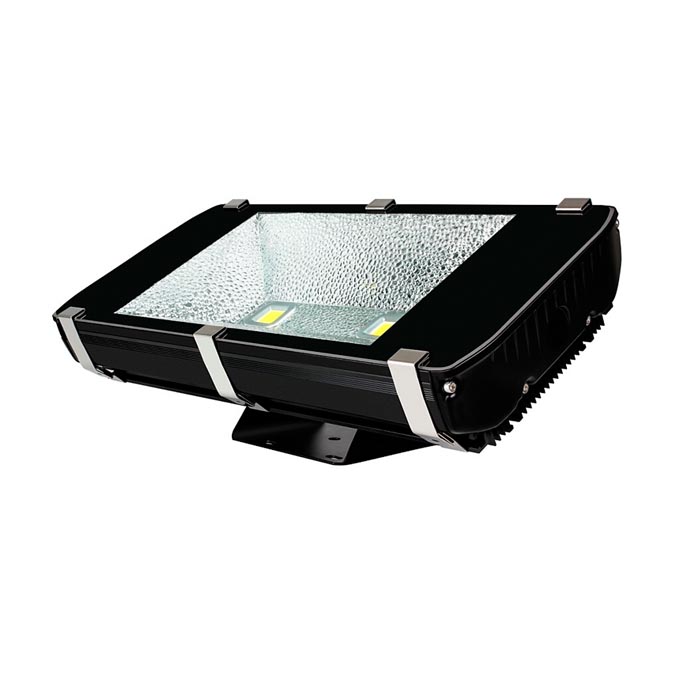

product show:

led tunnel light 120w led tunnel light

Our Services

Replying your inquiry within 24 hours

Consultation from professional and experienced staff

Providing 1-3 years warranty

Solid pakage & fast delivery & newly tracking mews

OEM is welcome. Providing customized service.

Company Information

Golden Future Enterprise HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years,especially for miner lamp, explosion proof lighting fixture, led street light and other led commercial lightings,and etc.

Besides the led application products, our factory also can do some OEM products, such as making moylds, plastic injections, CNC aluminum parts or copper parts.

Please do not hesitaye to contact us if you need led application products or need to develop new products.
