40w outdoor led gas station explosion proof light
- Model Number : DL602-08
- LED Light Source : CREE
- Input Voltage(V) : AC85-265V
- Lamp Power(W) : 40
- Lamp Luminous Flux(lm) : 4000
- CRI (Ra>) : 75
- Working Lifetime(Hour) : 50000
- IP Rating : IP65
- Ex mark : ExnA II T3
- Housing : aluminium alloy
- Certificatiion : CE,ROHS
40w outdoor led gas station explosion proof light
Product details of 40w outdoor explosion proof light

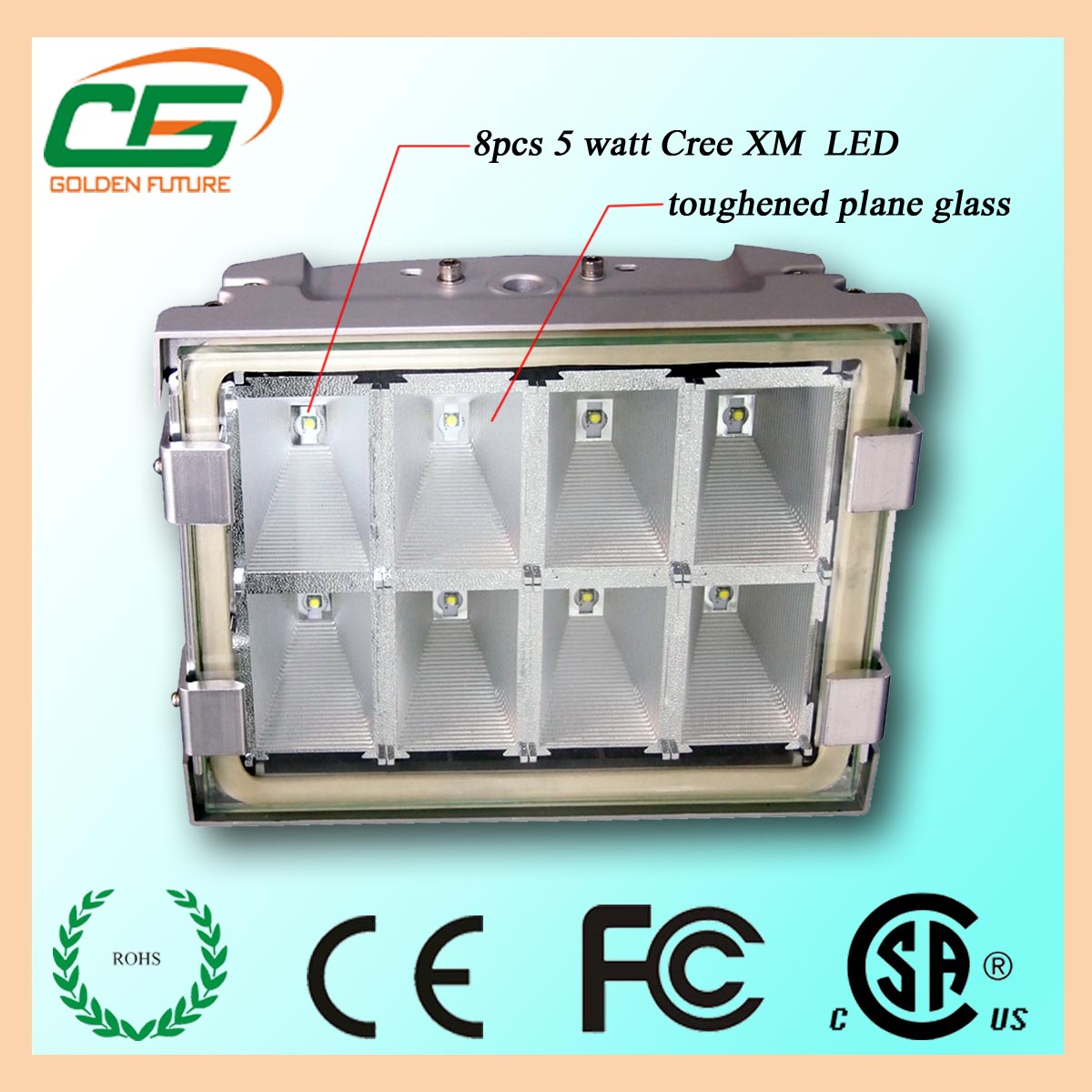

1. 8pcs 5 watt Cree XM white LED as the light source, lifetime is more than 100,000 hours

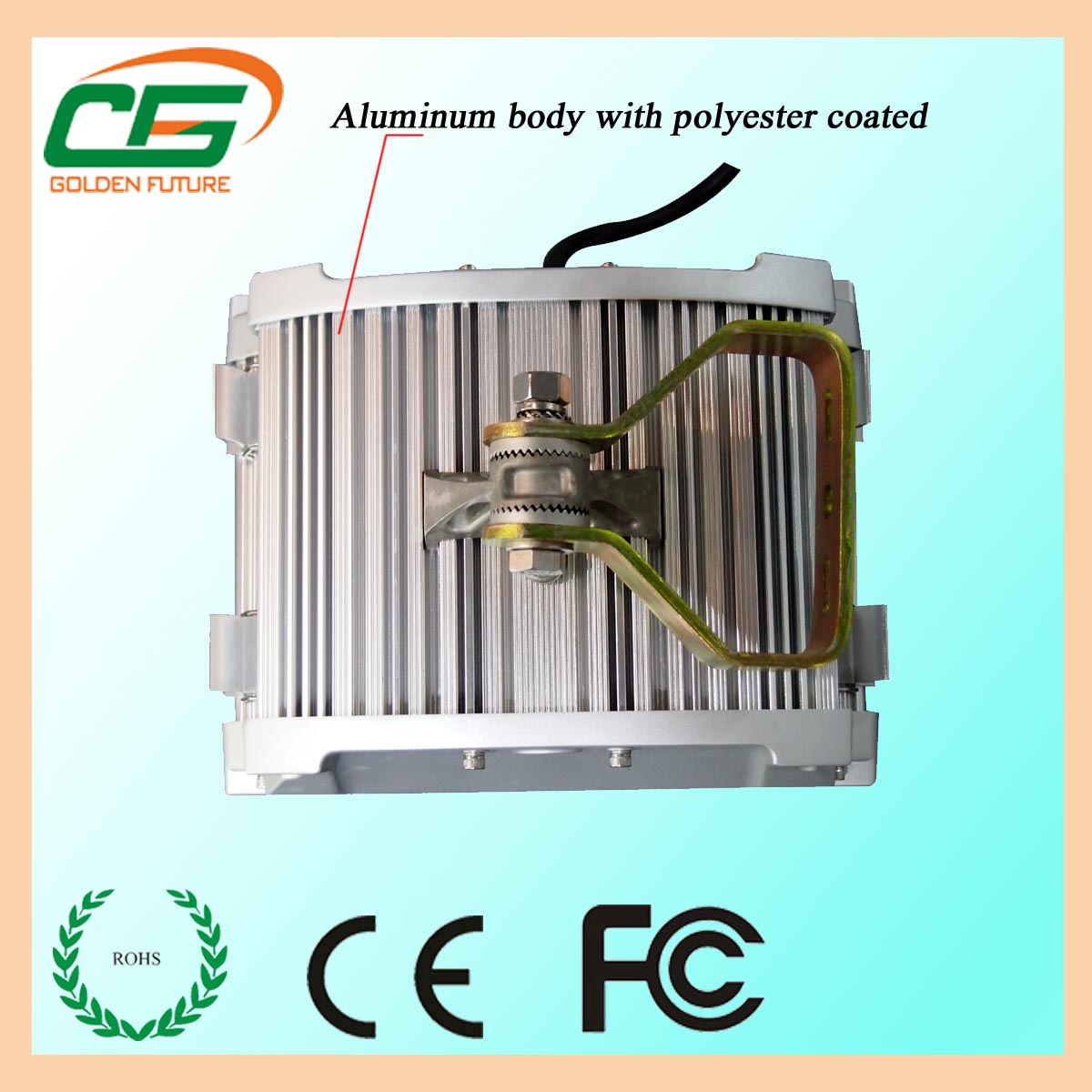

2. Aluminum body with polyester coated, toughened plane glass.
3. DL602-08 40w outdoor led gas station explosion proof light is heat-resistance, shock resistance, corrosion-resistance, and good light transparency.
4. No UV or IR for the LED light, no heat and no harmful radiation.
5. DL602-08 explosion proof light is a Multifunctional Led floodlight, which can be used as the street light,
tunnel light, or flood lighting in hazardous and explosive environment.
6. Output lumens: 4000 lumens,
7.Water-proof :classification:IP65
8. EX Mark:ExnA II T3
Technical parameters of led gas station explosion proof light
|
Items |
Unit |
Value |
|
|
Light |
LED Power |
W |
40 |
|
Luminous Flux |
lumen |
4000 |
|
|
Life span |
Hour |
100, 000 |
|
|
Rated Voltage |
V |
AC 110~240 |
|
|
DC 36 |
|||
|
DC 24 |
|||
|
Dimension |
cm |
20.4*27.8*11.5 |
|
|
Weight |
kg |
4.8 |
|
|
Inlet’s thread |
G3/4 |
||
|
Corrosion protection Classification |
WF2 |
||
|
IP Classification |
Ip65 |
||
|
EX Mark |
ExnA II T3 |
||
Applications of led gas station explosion proof light
1)Flammable and explosive Zone II and gas district.
2)Restrict district and heavy industry machining equipment district.
3)Drilling rig area and other atrocious seacoast and offing area.
4)Refinery, chemical plant, pharmacy plant, oil store and gas factory
