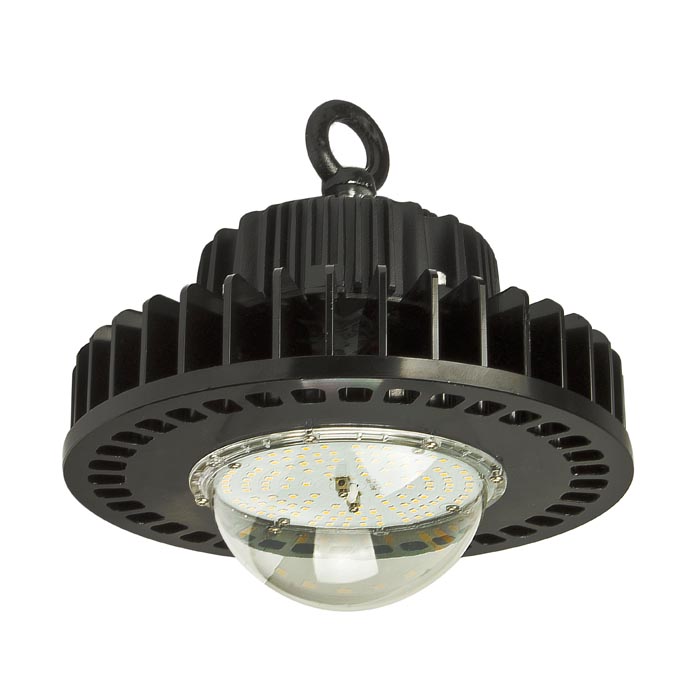

HL10B-100w long lifetime waterproof led high bay light

  • Model Number : HL10B-100W
  • Light Source : LED
  • Item Type : High Bay Lights
  • LED Light Source : Philips
  • Warranty(Years) : 2
  • Input Voltage(V) : AC90-305V
  • Lamp Power(W) : 100
  • Lamp Luminous Efficiency(lm/w) : 110
  • Lamp Body Material : Aluminum
  • IP Rating : IP65
  • Certification : CE, EMC, LVD
  • best working temperature : 0-30
  • Beam angle : 60/90/120
  • Application : For workshop, factory, storage warehouse
  • longlife span : 50000hrs



long lifetime waterproof 100w led high bay light

Product Description



1. High light efficiency >110lm/W
2. High Quality Philips LEDs with low lumen decay
3. Tj<80℃, PF ≥ 0.90
4. Mercury- and lead free, environment friendly,
5. Easy installation and low maintenance,
6. Surface of fixture especially treated with anti-
static, thermostable, anti-corrosive paint,
7. Integrated Meanwell driver, excellent heat dissipation ability and stable quality.
8.Housing material: Forging aluminum, the best material for heat dissipation.
9.Long lifespan up to 50000hrs



Technical specifications:



Model LED Type LED Q'ty
(pcs)
Color Voltage Beam Angle Wattage Lumen (lm) CRI (Ra) PF
HL10B-100w Philips3030 119 NW AC90-305V 125 100W 11000 70 ≥0.9
Philips3030 119 NW AC90-305V 60 100W 9900 70 ≥0.9
Philips3030 119 NW AC90-305V 90° 100W 10500 70 ≥0.9
Philips3030 119 NW AC90-305V 120 100W 10800 70 ≥0.9
Philips3030 119 DW AC90-305V 125 100W 10500 70 ≥0.9
Philips3030 119 DW AC90-305V 60 100W 9500 70 ≥0.9
Philips3030 119 DW AC90-305V 90° 100W 10200 70 ≥0.9
Philips3030 119 DW AC90-305V 120 100W 10300 70 ≥0.9

60°/90°/120° reflector for optional

.jpg

Application of long lifetime waterproof 100W led high bay light

1. Project lighting, IP65.

2. For workshop, factory, storage warehouse, exhibition center, gas station, toll station, and other places.

3. Replacement for sodium lamp

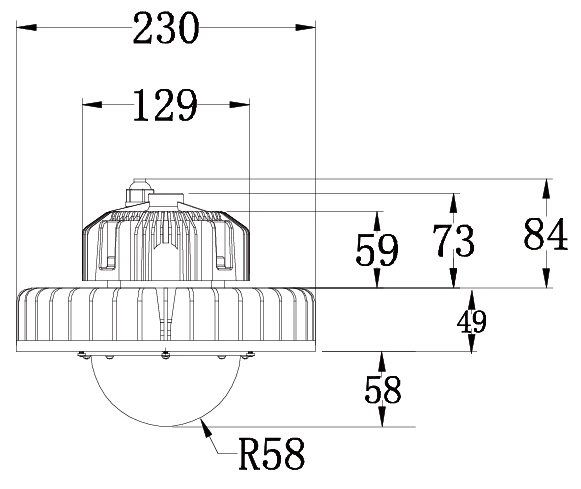

Installation specifications:

.png



Application Notice:

1. Operating temperature:-20 to 45℃
2. Storage temperature:-25 to 55℃
3. Optimal environment temperature:0 to 30℃



Light distribution Curve:

without reflector.jpg

Without reflector

60 reflector.jpg



60° reflector

90 reflector.jpg

90° reflector



120 reflector.jpg



120° reflector

package of long lifetime water proof led high bay light



Packing details Fixture 60° AL Reflector 90° AL Reflector 120° AL Reflector 60° PC Reflector
Net weight 3.2kgs 0.38 kgs 0.55 kgs 0.68 kgs 0.55 kgs
Outer carton(mm) 560*285*280 415*415*340 570*570*235 590*590*210 420*420*600
Q'ty per ctn 2pcs 8pcs 8pcs 8pcs 10pcs
G.W per ctn 8.5kgs 4.1kg 5.8kg 6.3kg 7.5kg
